Wire Mesh Decking for Warehouse Shelving: Benefits, Safety and Selection Guide
Wire Mesh Decking for Warehouse Shelving: A Practical Choice for Modern Storage
Modern warehouses are no longer designed only for storing identical pallets or full cartons. Many facilities now handle mixed SKUs, plastic bins, spare parts, packaged products and loose items within the same storage area.
At the same time, warehouse operators are paying greater attention to flexible layouts, faster picking, scalable automation and safer material handling. The 2026 MHI Annual Industry Report highlights technologies and infrastructure that can help supply chains become more adaptable, while DHL’s Logistics Trend Radar continues to identify automation, digitalization and operational resilience as important logistics priorities.
For these applications, heavy-duty shelving with galvanized wire mesh decking offers a practical alternative to traditional wooden boards or solid steel panels.

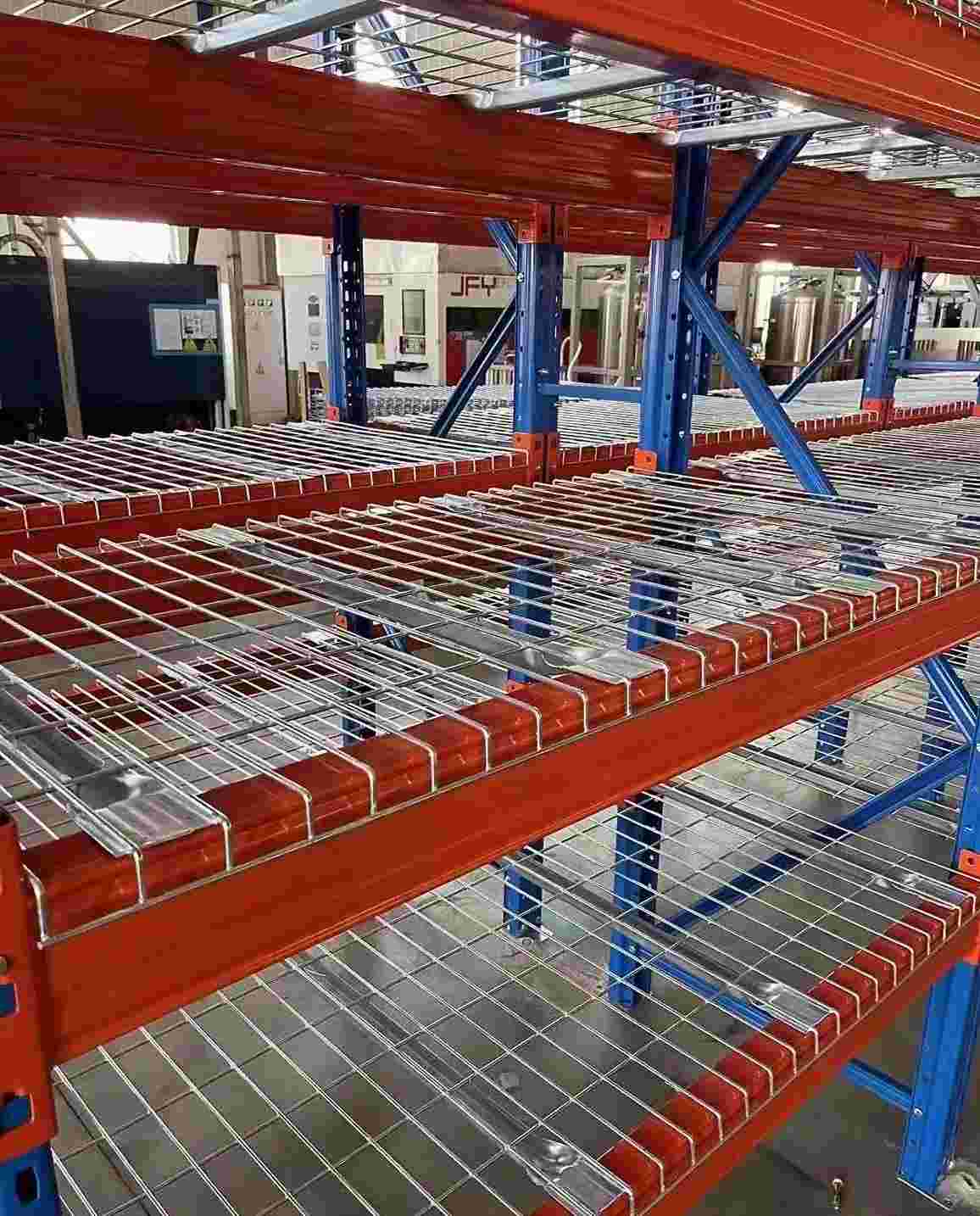

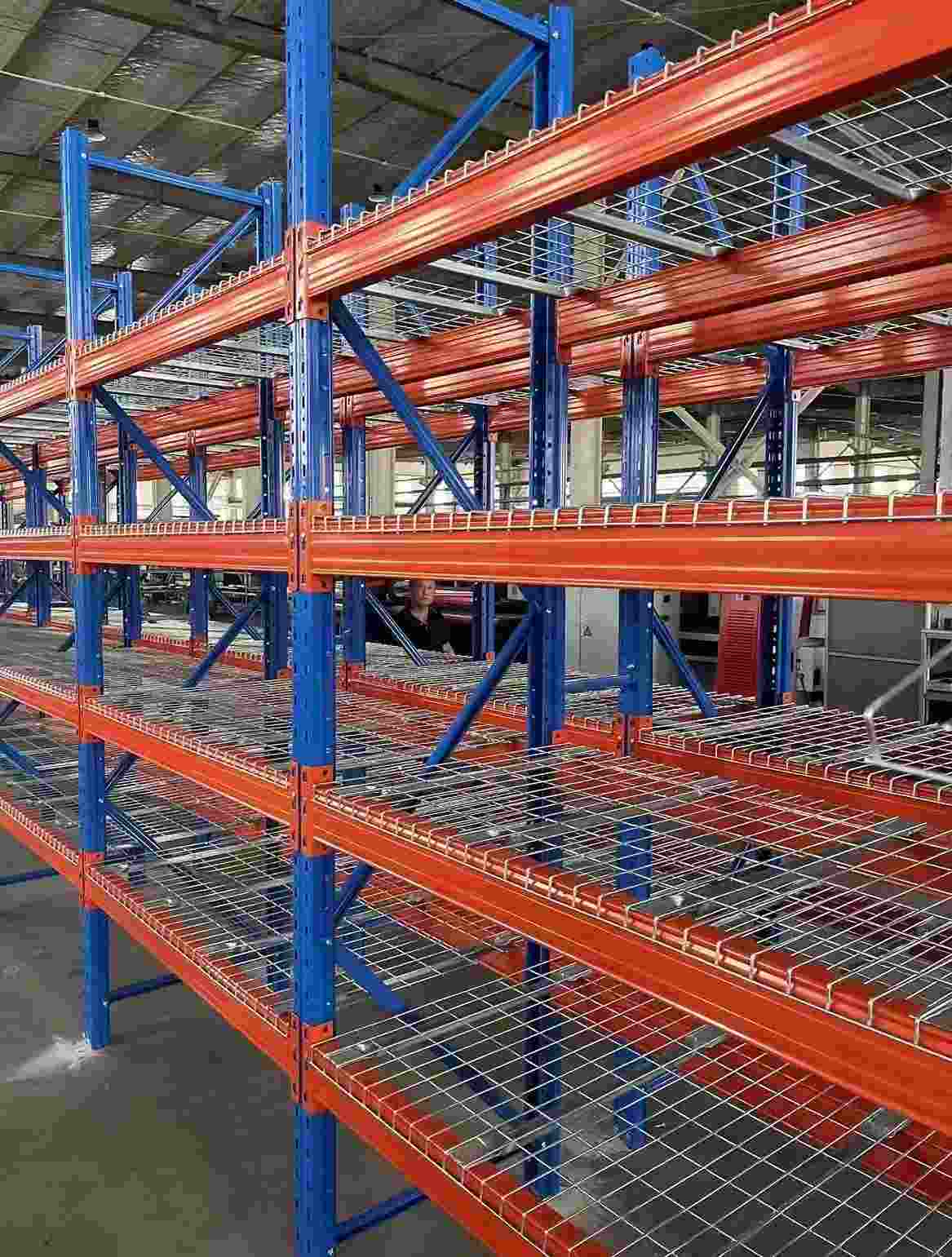

The warehouse shelving shown in KAYOU’s production images combines powder-coated steel frames, adjustable beams and reinforced wire mesh decks. This configuration provides open, visible and flexible storage for a wide range of industrial and commercial goods.
What Is Wire Mesh Decking?
Wire mesh decking is a removable steel grid panel installed across the beams of a shelving or pallet racking system.
A typical wire deck consists of:
Welded steel wire mesh
Formed support channels underneath the mesh
Waterfall edges that wrap over the rack beams
Galvanized or coated surface protection
Customized dimensions matched to the beam span
The support channels underneath the deck distribute the load toward the front and rear beams. The waterfall edges help keep the panel correctly positioned during loading, picking and daily warehouse operation.
Depending on the rack structure, wire decking can be used with:
Longspan shelving
Medium-duty warehouse shelving
Selective pallet racking
Carton and bin storage racks
Industrial picking shelves
Spare-parts storage systems
Why Are More Warehouses Choosing Wire Mesh Decking?
1. Better Support for Cartons, Bins and Loose Products
Traditional pallet racks are normally designed to support pallets directly on the beams. However, warehouses increasingly need to store cartons, plastic totes, components and irregular products that may not sit securely on two beams alone.
Wire decking creates a more continuous storage surface and reduces the risk of smaller products falling between the beams.
This does not replace correct loading procedures or engineering design. OSHA requires stored materials to be arranged and secured so that they do not slide, fall or collapse. The complete rack configuration, load distribution and operating method must therefore be evaluated together.
2. Improved Visibility During Picking and Inspection
The open-grid structure allows warehouse employees to see through the storage levels more easily.
Better visibility can help operators:
Identify stored products
Check whether cartons are correctly positioned
Notice damaged packages or fallen items
Read labels from different viewing angles
Inspect beams and rack connections
Reduce dark areas between shelving levels
Industry guidance on wire decking also identifies improved visibility, light penetration and easier maintenance as practical advantages over solid shelf materials.
This is especially useful in e-commerce fulfillment centers, spare-parts warehouses and distribution facilities where employees frequently pick individual cartons rather than complete pallets.
3. More Open Airflow and Light Distribution
Solid wooden or steel panels block more light and air between shelving levels.
By comparison, wire mesh decking allows air and overhead lighting to pass through the rack more freely. This can make the storage area feel brighter and can simplify visual stock checks.
The open surface also collects less large-area dust than a completely solid shelf. Nevertheless, regular warehouse cleaning and inspection remain necessary, particularly in food packaging, electronics, automotive parts and export storage environments.
4. Supports Sprinkler Water Passage
One of the most discussed search topics surrounding wire decking is its relationship with warehouse fire protection.
The open mesh design can allow water from overhead sprinklers to pass through the shelving more easily than a fully solid deck. Wire-deck manufacturers commonly identify this as an important advantage, and NFPA technical materials distinguish between wire mesh and solid shelving arrangements when evaluating rack-storage fire protection.
However, installing wire decking does not automatically make a warehouse fire-code compliant.
The final design must still be reviewed according to:
Local fire regulations
Stored commodity classification
Storage height
Flue-space requirements
Sprinkler type and position
Rack arrangement
Mesh opening percentage
Requirements from the local authority or insurer
KAYOU recommends confirming these conditions with the project’s fire-protection engineer before production.
5. Flexible for Changing SKU Sizes
A modern warehouse may store large cartons this month and smaller bins next month. A fixed storage surface can make future layout changes more difficult.
Wire mesh decks are normally removable and can be combined with adjustable beam levels. This helps warehouses respond to changes in:
Carton height
SKU quantity
Picking frequency
Inventory seasonality
Product packaging
Storage-zone layout
The modular approach is particularly relevant as warehouses move toward more flexible automation and frequently changing SKU mixes. Current warehouse-automation discussions increasingly emphasize modular systems that can adapt when order volume or service requirements change.
Wire Mesh Decking vs. Other Shelf Materials
| Shelf material | Main advantages | Points to consider |
|---|---|---|
| Galvanized wire mesh deck | Good visibility, airflow, removable installation and support for cartons or bins | Capacity depends on wire, channels, span and loading pattern |
| Steel shelf panel | Smooth surface and suitable for very small items | Heavier and blocks more light, air and sprinkler water |
| Plywood or particle board | Economical and easy to replace locally | Sensitive to moisture, possible edge damage and greater fire-design considerations |
| Pallet support bars only | Simple support for standard pallets | Not suitable as a complete shelf for loose cartons or small products |
The best choice depends on the goods, working environment, fire-protection design, cleaning requirements and expected service life.
How to Select the Correct Wire Deck
Confirm the Clear Beam Span
The deck dimensions must match the internal width and depth of the rack bay.
Providing only the overall rack size is not enough. The manufacturer normally needs:
Clear distance between upright frames
Front-to-back rack depth
Beam profile
Beam width
Number of decks required per level
Waterfall-edge dimensions
Define the Actual Loading Method
The same total weight can produce very different stresses depending on how it is placed.
For example:
Uniformly distributed cartons
Several plastic bins
A concentrated machine component
Pallet feet resting at specific points
Long products crossing multiple channels
Buyers should tell the supplier whether the stated load is a uniformly distributed load, pallet load or concentrated point load.
A deck that supports evenly distributed cartons may not safely carry the same weight concentrated in one small area.
Check the Number of Reinforcement Channels

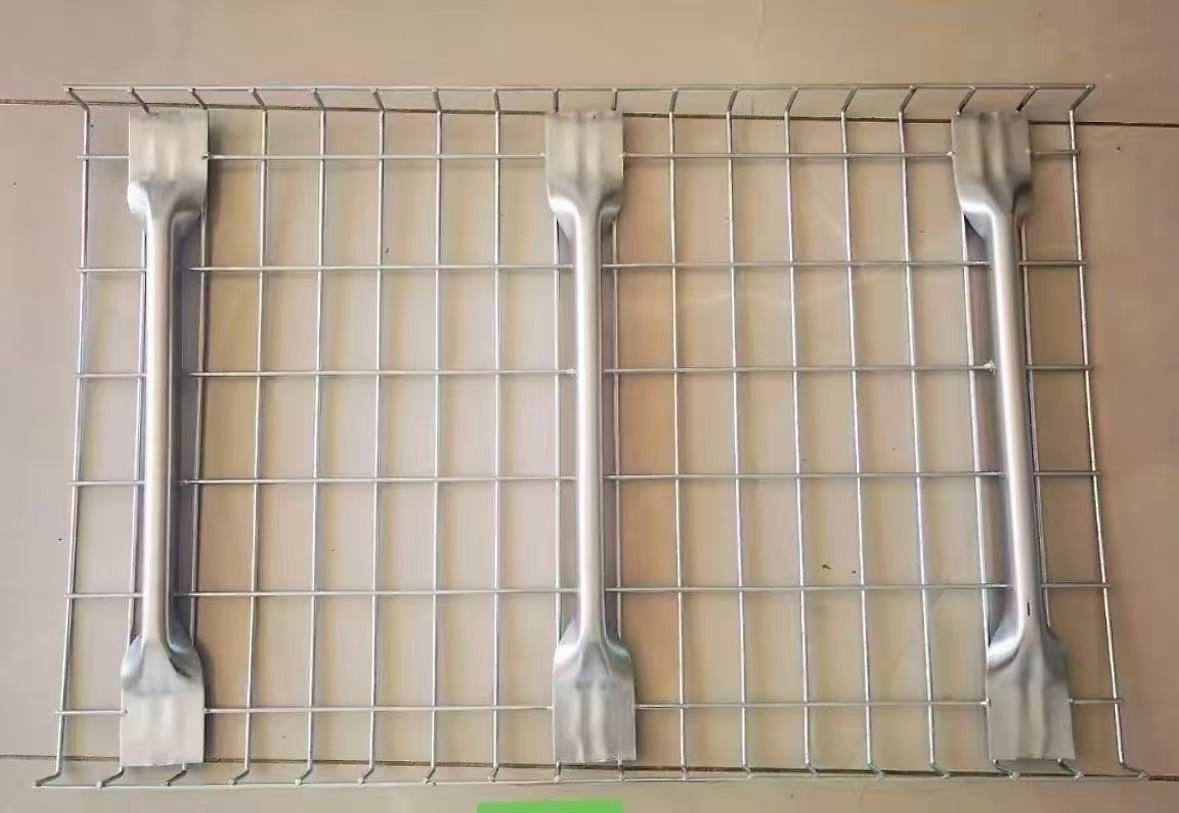

The images show formed steel channels welded beneath the wire grid. These channels transfer the load toward the supporting beams and help control deck deflection.
Channel quantity and profile should be selected according to:
Deck width and depth
Required load
Wire diameter
Mesh spacing
Position of the stored products
Acceptable deflection
More channels do not automatically guarantee sufficient capacity. The complete deck must be evaluated as one structural assembly.
Choose a Suitable Mesh Opening
Smaller mesh openings provide better support for small cartons and components, while larger openings may reduce material use and improve openness.
The correct opening depends on:
Minimum package dimensions
Carton strength
Whether goods have legs or feet
Fire-protection requirements
Cleaning and visibility needs
Confirm Beam Compatibility
Wire decks are not universally interchangeable.
A deck designed for one beam profile may not fit another rack system correctly. Before ordering replacement decks, buyers should provide beam drawings, clear photographs or physical measurements.
Where Can This Shelving System Be Used?
Heavy-duty shelving with wire mesh decking is suitable for many B2B storage environments, including:
E-Commerce and Fulfillment Warehouses
The open shelving levels make cartons and bins easy to identify during manual picking and replenishment.
Automotive Spare-Parts Storage
Different shelf heights can accommodate boxes, tools, maintenance components and irregular spare parts.
Manufacturing Facilities
The system can be used for raw materials, work-in-progress items, molds, components and packaged finished products.
Wholesale and Distribution Centers
Adjustable levels support changing carton sizes and mixed inventory.
Electronics and Appliance Warehouses
Wire decks provide an open surface for packaged equipment while allowing easier inspection from below.
Retail Backrooms
The system can combine reserve stock, carton storage and accessible picking positions within the same rack structure.
How KAYOU Controls Wire-Deck Shelving Quality
A reliable shelving system depends on more than its appearance. Important quality-control steps should include both the rack structure and the wire decking.
At KAYOU, project requirements can be checked through the following process:
Material and Component Inspection
Steel sections, wire mesh, beams, uprights and support channels are checked against the confirmed production specifications.
Welding Inspection
Welded intersections and reinforcement-channel connections are inspected for missing welds, unstable joints and visible deformation.
Dimensional Inspection
The deck width, depth, waterfall edges and support-channel positions are checked before trial installation.
Rack-Fit Testing
Sample decks can be installed on the corresponding beams to confirm positioning, clearance and stability.
Surface Inspection
Galvanized mesh surfaces and powder-coated rack components are checked for exposed areas, sharp edges, coating damage and transportation risks.
Load Verification
Where required, load testing or engineering verification can be arranged according to the confirmed deck configuration and loading method.
A professional quotation should clearly state the intended load condition instead of relying only on a general statement such as “heavy duty.”
What Information Should You Send for a Quotation?
To receive a more accurate wire-mesh shelving proposal, prepare the following details:
Rack length, depth and height
Number of shelving levels
Required load per level
Carton, bin or pallet dimensions
Whether the load is evenly distributed
Warehouse layout or available floor space
Required surface color
Installation country
Fire-code or project-standard requirements
Estimated order quantity
Photos of the existing warehouse, beam cross-section and stored products can also help reduce design errors.
Frequently Asked Questions
How much weight can a wire mesh deck hold?
There is no single standard capacity for every wire deck. Capacity depends on the deck dimensions, wire diameter, mesh pattern, support-channel profile, channel quantity, beam span and load distribution.
The required capacity should be confirmed before production and should not be judged only by visual appearance.
Can wire decking be used without pallets?
Yes. Wire mesh decking is commonly used to support cartons, plastic bins and loose packaged goods. However, the deck must be designed for the actual product size and loading pattern.
Can pallets be placed directly on wire decking?
Some wire decks are designed to provide additional support beneath pallets, but the pallet and rack beams should remain the primary engineered load path unless the system is specifically designed otherwise.
Do not assume that every wire deck is suitable for concentrated pallet-foot loads.
Is galvanized wire decking rustproof?
Galvanizing provides corrosion resistance but does not make the product permanently rustproof in every environment.
High-humidity, outdoor, chemical or cold-storage applications should be discussed with the supplier so that an appropriate material and surface treatment can be selected.
Is wire decking better than plywood?
Wire decking generally offers better visibility, airflow and resistance to moisture. Plywood may be economical and provides a completely solid surface. The correct choice depends on the stored goods, fire-protection requirements, environment and project budget.
Can KAYOU customize the deck dimensions?
Yes. KAYOU can customize rack dimensions, deck depth, deck width, mesh opening, reinforcement-channel configuration, shelf levels and surface finishes according to the warehouse application.
Build a Safer and More Flexible Warehouse Storage System
Wire mesh decking is a relatively simple component, but its design can influence daily picking, visibility, housekeeping, load support and future storage flexibility.
The correct solution should be selected according to the complete rack structure and actual goods—not only according to the lowest price or a general load-capacity description.
KAYOU provides customized longspan shelving, industrial warehouse racks and galvanized wire mesh decking for distributors, importers, project contractors and warehouse operators.
Need a Custom Wire Mesh Shelving Solution?
Send us your rack dimensions, required load, stored-product details and project requirements. KAYOU will prepare a suitable shelving proposal for your application.
